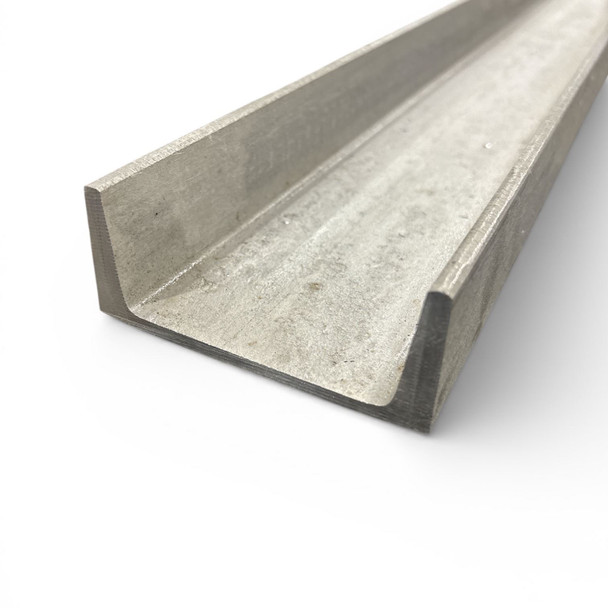

4" x 1.58", 304 Stainless Steel Channel, Tapered Leg (4 x 5.4)
(No reviews yet)
Write a Review
- SKU:
- 304SSCHLW4H1.584T0.184
- MPN:
- 9910348404
- Availability:
- Lengths below are in stock, choose length to see quantity in stock.
Description
304 Stainless Steel Channel is designed for applications requiring strength along with excellent corrosion resistance. It is ideal for use in acidic, chemical, and freshwater environments, offering high temperature resistance across extreme heat and cold. Listed by outside dimensions on Width x Height x Thickness x Length.
View AllClose
- Material: Stainless Steel
- Alloy: 304
- Shape: Channel
- Height: 1.584 inch
- Width: 4.000 inch
- Base Thickness 0.184 inch
- Leg Thickness: 0.296 inch
- Length:
- Finish: Hot Rolled
- Quantity in Package: piece(s)
- Tolerances: Length: (-0/+1 inch)
Material Specifications
Alloy: |
304 |
Finish: |
Hot Rolled |
Height: |
1.584 inch |
Size: |
4.000 inch x 1.584 inch (0.184 inch) |
Thickness: |
0.184 inch |
Tolerances: |
Length: (-0/+1 inch) |
Width: |
4.000 inch |
